Platecoil® Heat Exchanger

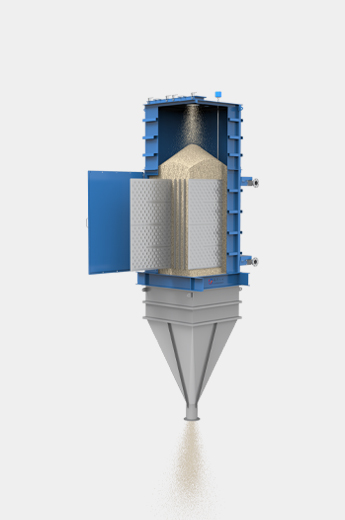

Platecoil heat exchanger consists of 1 to several Platecoil heat exchange plates. Platecoil heat exchange is a flat plate-type heat exchanger, also known as Pillow Plate, Dimple Plate, Honeycomb Plate or Heat Transfer Plate, which can be made into a variety of shapes and sizes according to requirements.

Platecoil heat exchange consists of two metal sheets that are laser welded together by welding a custom circle weld pattern. The outside perimeter of Platecoil heat exchange is fully laser welded to create a pressure boundary. At the edges of Platecoil heat exchange, a contour is welded to create a pressure-tight part. After welding, it is inflated to make the metal sheets embossed and form a cavity. The heat exchange fluid flows through the cavity internal space in the Platecoil heat exchange, the cooled or heated medium flows through the plate internal channel and the two heat exchange fluids indirectly exchange the heat through the wall of the metal sheet.

Depending on the application, product, pressure and temperature, the material type, thickness, weld seam position, baffle line position, weld joint position and distance are all required for non-standard design.

Inquiry

Functional advantages

Internal fluid highly turbulent, with an extremely high Reynolds coefficient and high heat transfer efficiency
Special passage flow design, no dead zone in the inner and outer passages
Special passage flow design,

low resistance drops
Withstand internal pressure of 60Mpa, applicable for various fluids and even some solids
Available in 304, 316L, 2205, SMO254 or Hastelloy material
Simple and detachable structure, easy to operate, clean and maintain
High heat exchange density, the heat exchange area of the same arrangement is twice that of the tube heat exchanger
Evenly distributed temperature fields, the temperature of the heat exchange fluid tends to be consistent
